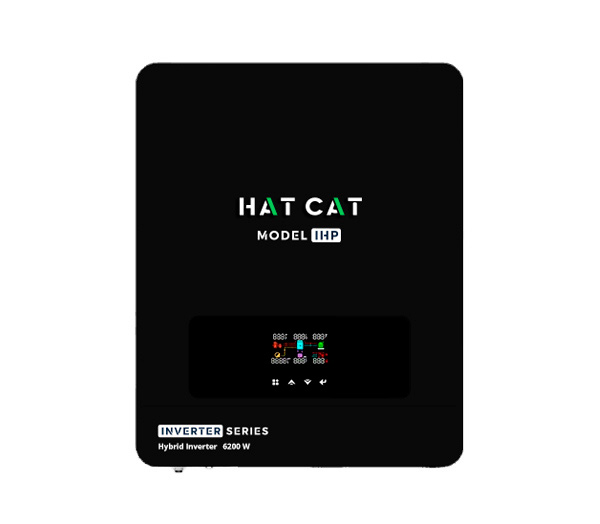

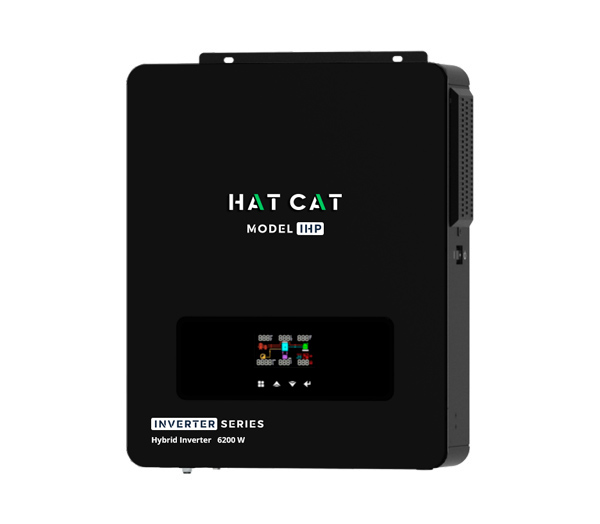

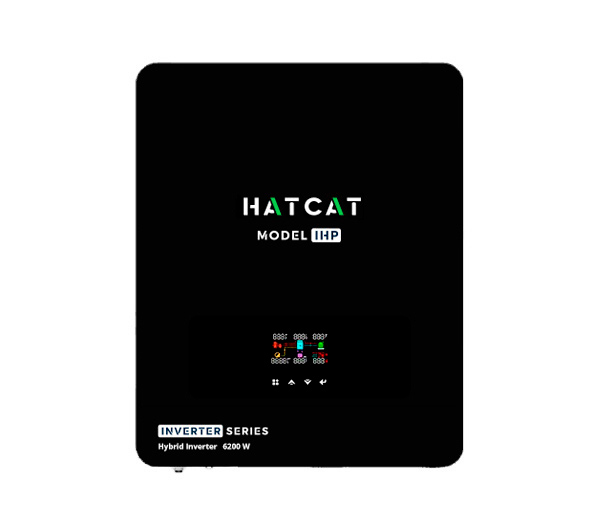

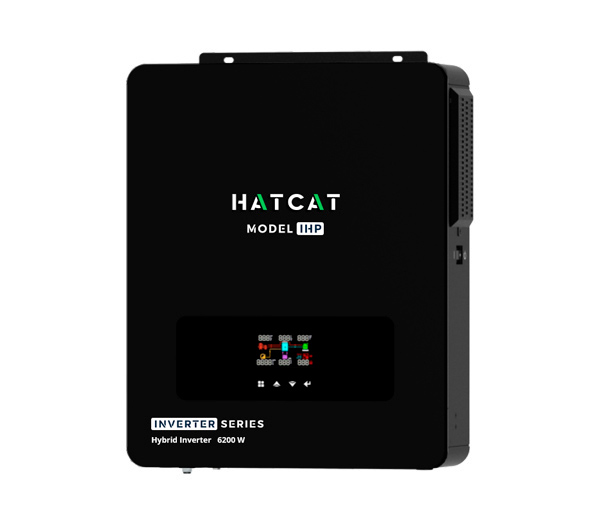

Model IHP
Hybrid inverter, PV mode, 3.6 KW - 6.2 KW, Wi-Fi

The hybrid inverter of the IHP series is a multifunctional inverter station for autonomous power supply of the object. It is equipped with a built-in charger with the possibility of connecting a gasoline-diesel generator, an external electrical network, a large-capacity battery, solar panels and joint work with alternative power sources. The inverter station generates a pure sine wave alternating current, has a high efficiency and uses a small current for its own needs. This makes it possible to use the hybrid inverter as a power source for high-power loads for a long time, without the possibility of using a traditional electrical network.

Powerful and silent

  • The series has 3 power models: 3600 W, 4200 W and 6200 W
  • Pure sine wave solar inverter(on/off Grid)
  • Through out, zero line - guarantees the inclusion and operation of the gas boiler
  • Output power factor 1.0
  • Control via WIFI (IOS and Android)
  • Inverter can run without battery
  • Quiet, silent operation when connecting low and medium loads
  • Direct connection of solar panels.
    Built-in 6200W MPPT controller, high PV input voltage range (60~500 VDC).
  • Intelligent battery charging system for extended lifespan.
    Automatic charge equalization for each cell
  • Battery management and analysis via dedicated RS232/RS485 line


Specifications

Specifications

ModelIHP-3600IHP-4200IHP-6200 PRO
Phase1-phase
Maximum PV Input Power6200 W6200 W6500 W
Rated Output Power3600 W / 3600 VA4200 W / 4200 VA6200 W / 6200 VA
Maximum Solar Charging Current120 A140 A120 A
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC VoItage / Maximum DC VoItage360 / 500 VDC
Start-up Voltage I Initial Feeding Voltage60 VDC / 90 VDC
MPPT VoItage Range60 ~ 450 VDC
Maximum Input Current1 / 18 A1 / 22 A
GRID OUTPUT (AC)
Nominal Output VoItage220 / 230 / 240 VAC
Output VoItage Range195.5 ~ 253 VAC
Nominal Output Current15.7 A18.2 A27.0 A
Power Factor>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)98%
TWO LOAD OUTPUT POWER
Full Load3600 W4200 W6200 W
Maxium Main Load3600 W4200 W6200 W
Maxium Second Load(battery mode)1200 W1400 W2067 W
Maxium Load Cut Off VoItage26 VDC26 VDC52 VDC
Maxium Load Return VoItage27 VDC27 VDC54 VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up VoItage / Auto Restart VoItage120 - 140 VAC / 180 VAC
Acceptable Input VoItage Range90 - 280 VAC or 170 - 280 VAC
Frequency Range49~51±1HZ
Maximum AC Input Current30 A30 A40 A
PV INPUT (DC)
Nominal DC VoItage/Maximum DC VoItage360 / 500 VDC
MPPT VoItage Range60 ~ 450 VDC
Maximum Input Current1 / 18 A1 / 22 A
BATTERY MODE OUTPUT (AC)
Nominal Output VoItage220 / 230 / 240 VAC
Output WaveformPure sine wave
Efficiency (DCto AC)94%
BATTERY & CHARGER
Nominal DC VoItage24 VDC48 VDC
Maximum Solar Charging Current120 A140 A120 A
Maximum AC Charging Current100 A100 A100 A
Maximum Solar+AC Charging Current120 A140 A120 A
HYBRID OPERATION
PV INPUT (DC)
Nominal DC VoItage / Maximum DC VoItage360 / 500 VDC
Start-up Voltage / Initial Feeding Voltage90 VDC / 120 VDC
MPPT VoItage Range60 - 450 VDC
Maximum Input Current1 / 18 A1 / 22 A
GRID OUTPUT (AC)
Nominal Output VoItage220 / 230 / 240 VAC
Output VoItage Range195.5 ~ 253 VAC
Nominal Output Current15.7 A18.2 A27.0 A
AC INPUT
AC Start-up VoItage / Auto Restart VoItage120 - 140 VAC / 180 VAC
Acceptable InputVoItage Range90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current30 A30 A40 A
Maximum AC Charging Current100A
GENERAL
PHYSICAL
Dimension,D*W*H(mm)420 * 350 * 110
Cartoon Dimension, D *W *H(mm)500 * 415 * 180
Net Weight (kgs)8.08.08.9
Gross Weight(kgs)9.09.010.0
INTERACE
Communication PortRS232 / RS485 / WIFI / GPRS / LITHIUM BATTERY
ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature-10°C ~ 50°C
STANDARD
Compliance SafetyCE
