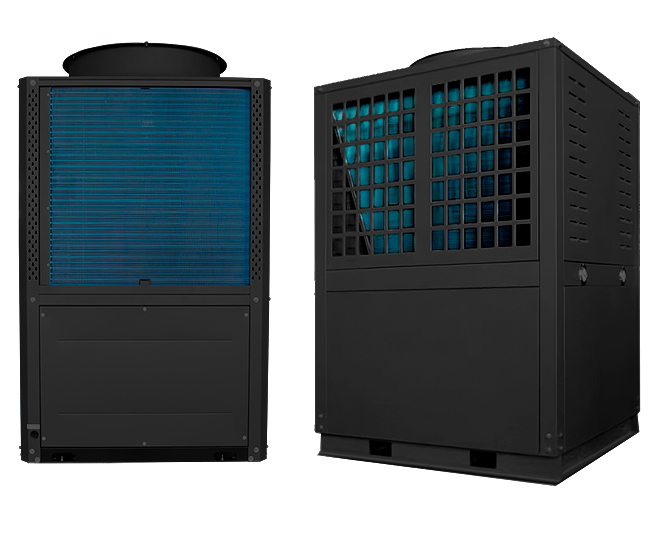

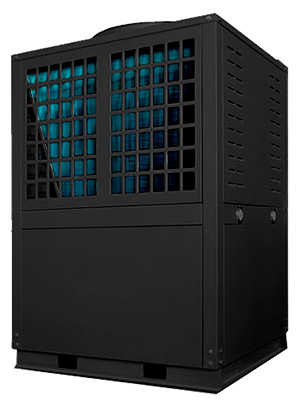

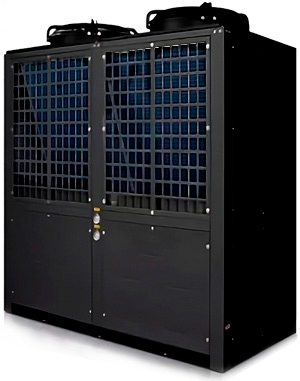

Commercial Heat Pumps

Key Features

• Multi-level protection: pressure, voltage, temperature, anti-freeze... Multiple protections:The multiple protective design ensures the system long service life and stable operation, including high pressure protection, low pressure protection, high voltage/current protection, high temperature protection, frosting protection and anti-freeze protection.

• Full DC inverter compressor and fan motor Compressor with adjustable speed and inverter drive with 2 paramagnets (brushless). The quiet, highly efficient Hitachi rotary compressor is the heart of the system.

• High-quality components Our heat pumps are equipped with high quality components from renowned brands such as: Hitachi, Grundfos, Danfoss...

• Variable speed, high efficiency pump Fully integrated, variable speed, high efficiency pump for the heating circuit modulates flow to match heating demand and overcome hydraulic resistance whilst maintaining peak efficiency.

• Environmentally friendly refrigerant R290 The natural refrigerant propane R290 is an organic compound and is a hydrocarbon. It has a higher thermal conductivity compared to other refrigerants, which means that it can transport heat/cold into the home with maximum efficiency and requires significantly less electricity.

• Control via Wi-Fi and ModBus Full control and configuration of equipment using a phone application. You can easily control the indoor climate from anywhere in the world.

• Outlet water temperature up to +75℃ Supply of hot water up to 75ºC for domestic needs without the need to use additional heating sources.

• Color touch screen Covering all aspects of heat pump and system management on a 5" touch screen. It can be installed anywhere in your home. Current values, settings, statistics and planning are all available with one touch.

• Stable Running at -25℃ Ambient Temperature Effectively removes and transports heat from the street even at very low outside temperatures of -25°C

• Cascade connection up to 8 devices The software allows for connecting heat pumps in a cascade of up to eight devices of the same type. This design provides complete flexibility in building a system with the desired capacity.

Specifications

Model		C50-R290-3P	C100-R290-3P
Power supply	V ∕ Ph ∕ Hz	380-415V ∕ 3 Phase ∕ 50Hz
Heating Capacity at Air 7℃∕6℃, Water 30℃ in, 35℃ out
Heating Capacity	kW	50	90
Power Input	kW	12.35	20.8
COP		4.05	4.32
Heating Capacity at Air 7℃∕6℃, Water 50℃ in, 55℃ out
Heating Capacity	kW	50	67
Power Input	kW	17.5	25.48
COP		2.86	2.63
Heating Capacity at Air -12℃∕-14℃, Water 50℃ in, 55℃ out
Heating Capacity	kW	24	40
Power Input	kW	15.4	25
COP		1.55	1.6
Cooling Capacity at Air 35℃∕24℃, Water 12℃ in, 7℃ out
Cooling Capacity	kW	30	60
Power Input	kW	11.9	22.9
EER		2.53	2.62
Max Power Input	kW	16.8	36.5
Max Current	A	31.5	63.3
Refrigerant		R290	R290
Compressor quantity		1	2
Expansion Valve	mm	Saginomiya∕EEV	Saginomiya∕EEV
Air Flow Direction		Vertical	Vertical
Water Flow Volume	m3∕h	8	16
Water Pressure Drop	kPa	50	50
Dimensions(L*W*H)	mm	1252*1076*1870	2198*1096*2176
Working temperature range	℃	-25 ~ 48
Noise	dB(A)	≤62	≤67
IP class		IPX4
Net Weight	kg	450	800
Water connection	mm	DN 40	DN 80

Connection diagram

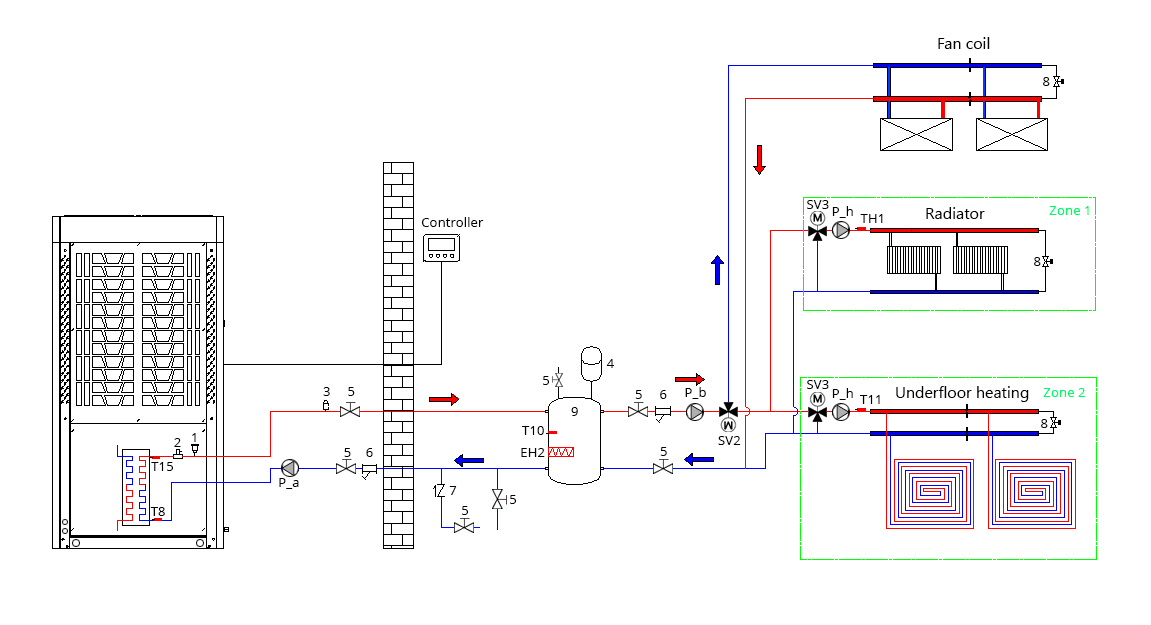

Heating and cooling

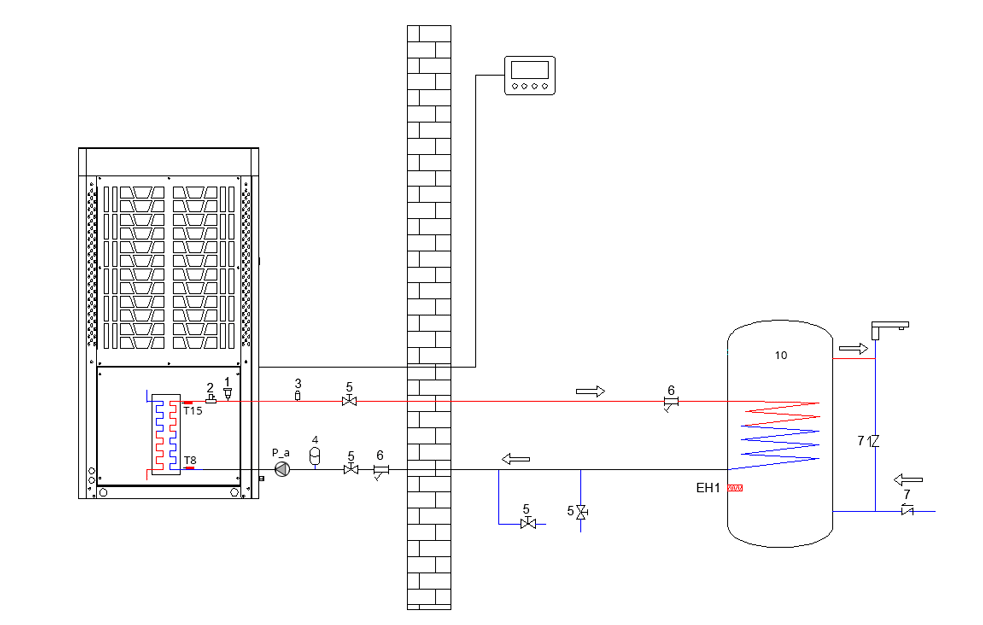

Heating water for domestic needs

Performance diagram

• C50-R290-3P
• C100-R290-3P

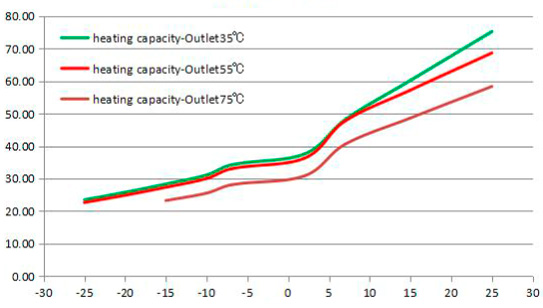

Heating Capacity

Capacity (kW)
Ambient temperature (℃)

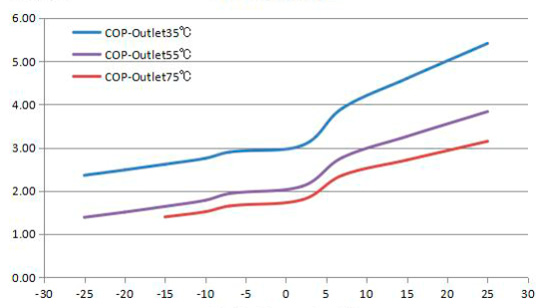

Coefficient of performance (COP)

COP (W/W)
Ambient temperature (℃)

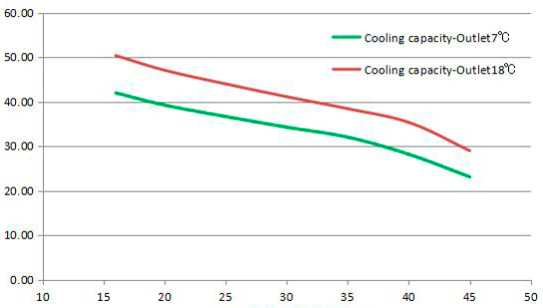

Cooling Capacity

Capacity (kW)
Ambient temperature (℃)

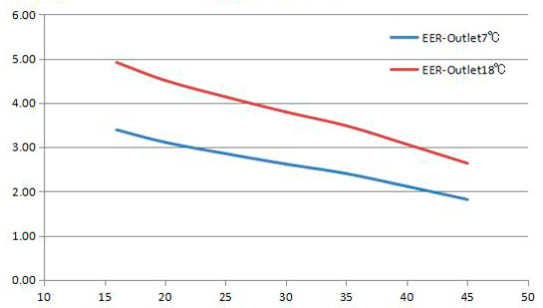

Energy efficiency ratio (EER)

EER (W/W)
Ambient temperature (℃)
