Model P
7KW - 35KW, Mitsubishi inverter compressor,
R32, Wi-Fi
With P-Series pool inverter heat pumps, users can achieve fast heating or cooling of water. Its highlight is the full inverter technology combined with a special vertical design.
Pool heat pumps absorb large amounts of free energy from the heating air and circulate the water in the pool. They are not limited by season and can operate at low temperatures. HATCAT pool heat pumps offer a full range of models and specifications. They can be used not only in commercial pools, but also in home and villa pools of various sizes. Mitsubishi inverter compressor can not only adapt to harsh environmental conditions, but also effectively guarantee the long service life of the equipment.
Compact and productive
- The series has 9 models with power from 7 to 35 kW
- Modes: heating, cooling and automatic mode
- High-end Mitsubishi inverter compressor
- Coefficient of performance (COP) 15.8 KW (COP)
- Quiet operation 39 ~ 59 dB
- Titanium heat exchanger
- Vertical construction. Top discharge air outlet
- Multi-protection for safe operation
- Fast installation
- Certificates: CE, SG Ready, Rohs, ErP Ready, TÜV SÜD
- 5 years warranty on compressor
Specifications
Key Features
-
Titanium heat exchanger Titanium, as an inert material, has exceptionally high thermal conductivity and resistance to corrosion, making it an ideal material for heat exchangers in swimming pools where the water may contain various chemicals, salts and chlorine. Such heat exchangers will last for decades without requiring replacement, which pays for their higher initial cost.
-
Multi-level protection: pressure, voltage, temperature, anti-freeze... Multiple protections:The multiple protective design ensures the system long service life and stable operation, including high pressure protection, low pressure protection, high voltage/current protection, high temperature protection, frosting protection and anti-freeze protection.
-
Environmental friendly R32 refrigerant R32 is a more modern and environmentally friendly refrigerant than R410A. It is more energy efficient, does not deplete the ozone layer, and poses less of a fire risk.
-
With 4-way valve inside for defrosting The 4-way valve allows the heat pump evaporator to be defrosted quickly and efficiently, reducing downtime and increasing overall system efficiency. Increases reliability by reducing the risk of damage to the evaporator.
-
Full DC inverter compressor and fan motor Compressor with adjustable speed and inverter drive(brushless). The quiet, highly efficient Mitsubishi rotary compressor is the heart of the system.
-
High-quality components Our heat pumps are equipped with high quality components from renowned brands such as: Mitsubishi, Grundfos, Danfoss...
-
Control via Wi-Fi and ModBus Full control and configuration of equipment using a phone application. You can easily control the temperature of water in your pool from anywhere in the world.
-
Color touch screen Covering all aspects of heat pump and system management on a touch screen
-
Variable speed, high efficiency pump
Specifications
 |
|
|
|||||||
| Model | P07-R32-1P | P10-R32-1P | P13-R32-1P | P17-R32-1P | P21-R32-1P | P28-R32-1P | P35-R32-1P | P28-R32-3P | P35-R32-3P |
|---|---|---|---|---|---|---|---|---|---|
| Power supply | 220 - 240V ∕ 1 ∕ 50Hz | 380-415V ∕ 3 ∕ 50Hz | |||||||
| Heating Capacity at Air 26°C, Humidity 80%, Water 26°C in, 28°C out | |||||||||
| Heating Capacity (kW) | 7.2 - 1.7 | 9.2 - 2.3 | 12.5 - 3.0 | 16.5 - 3.8 | 21 - 4.8 | 28 - 6.8 | 35 - 8.8 | 28 - 6.8 | 35 - 8.8 |
| Power Input (kW) | 1.06 - 0.11 | 1.35 - 0.15 | 1.84 - 0.19 | 2.43 - 0.24 | 3.09 - 0.30 | 4.12 - 0.43 | 5.15 - 0.56 | 3.97 - 0.43 | 5.15 - 0.56 |
| COP | 15.8 - 6.8 | 15.8 - 6.8 | 16 - 6.8 | 15.8 - 6.8 | 15.8 - 6.8 | 15.8 - 6.8 | 15.8 - 6.8 | 15.8 - 6.8 | 15.8 - 6.8 |
| Heating Capacity at Air 15°C, Humidity 70%, Water 26°C in, 28°C out | |||||||||
| Heating Capacity (kW) | 5.9 - 1.4 | 7.4 - 1.9 | 9.5 - 2.3 | 13.1 - 3 | 16.5 - 3.8 | 23 - 5.5 | 25.5 - 6.4 | 23 - 5.5 | 25.5 - 6.4 |
| Power Input (kW) | 1.2- 0.18 | 1.51 - 0.25 | 1.9 - 0.30 | 2.67 - 0.39 | 3.37 - 0.5 | 4.7 - 0.72 | 5.2 - 0.84 | 4.7 - 0.72 | 5.2 - 0.84 |
| COP | 7.6 - 4.9 | 7.6 - 4.9 | 7.6-5 | 7.6~4.9 | 7.6-4.9 | 7.6-4.9 | 7.6-4.9 | 7.6-4.9 | 7.6-4.9 |
| Cooling Capacity at Air 35°C, Water 29°C in, 27°C out | |||||||||
| Cooling Capacity (kW) | 4.2-1.0 | 5.3 - 1.3 | 7.2 - 1.7 | 9.4 - 2.1 | 11.6 - 2.7 | 14.9 - 3.8 | 19.3 - 4.9 | 14.9 - 3.8 | 19.3 - 4.9 |
| Power Input (kW) | 1.11 - 0.15 | 1.4 - 0.19 | 1.89 - 0.25 | 2.47 - 0.31 | 3.05 - 0.4 | 3.92 - 0.57 | 5.08 - 0.73 | 3.92 - 0.57 | 5.08 - 0.73 |
| EER | 6.6 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 | 6.7 - 3.8 |
| * General data | |||||||||
| Max Power Input (kW) | 1.45 | 1.75 | 2.2 | 2.5 | 3.2 | 4.45 | 6.43 | 4.76 | 6.93 |
| Max Current (A) | 7.1 | 8.3 | 10.2 | 11.9 | 14.7 | 20.4 | 30 | 7.9 | 11.3 |
| Water Flow VoIume (m3∕h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 12 | 9 | 12 |
| Refrigerant | R32 | ||||||||
| Heat Exchanger | Titanium | ||||||||
| Air Flow Direction | Vertical | ||||||||
| Automatic defrosting | by 4 way valve | ||||||||
| Working temp, range (°C) | -15 - 43 | ||||||||
| Casing Material | ABS | ||||||||
| Water Proof Level | IPX4 | ||||||||
| Noise level 1m dB(A) | 39 - 49 | 40 - 52 | 42 - 53 | 43 - 55 | 45 - 56 | 47 - 58 | 49 - 59 | 47 - 58 | 49 - 59 |
| Noise level 10m dB(A) | 20 - 29 | 20 - 32 | 22 - 33 | 23 - 35 | 25 - 36 | 27 - 38 | 29 - 39 | 27 - 38 | 29 - 39 |
| Net Weight (kg) | 44 | 46 | 55 | 57 | 61 | 86 | 92 | 86 | 92 |
| Gross Weight (kg) | 55 | 57 | 68 | 70 | 72 | 96 | 104 | 96 | 104 |
| Net Dimensions (mm) | 530*530*640 | 650*650*770 | 715*715*955 | ||||||
| Package Dimensions (mm) | 560*600*780 | 680*720*910 | 765*785*1080 | ||||||

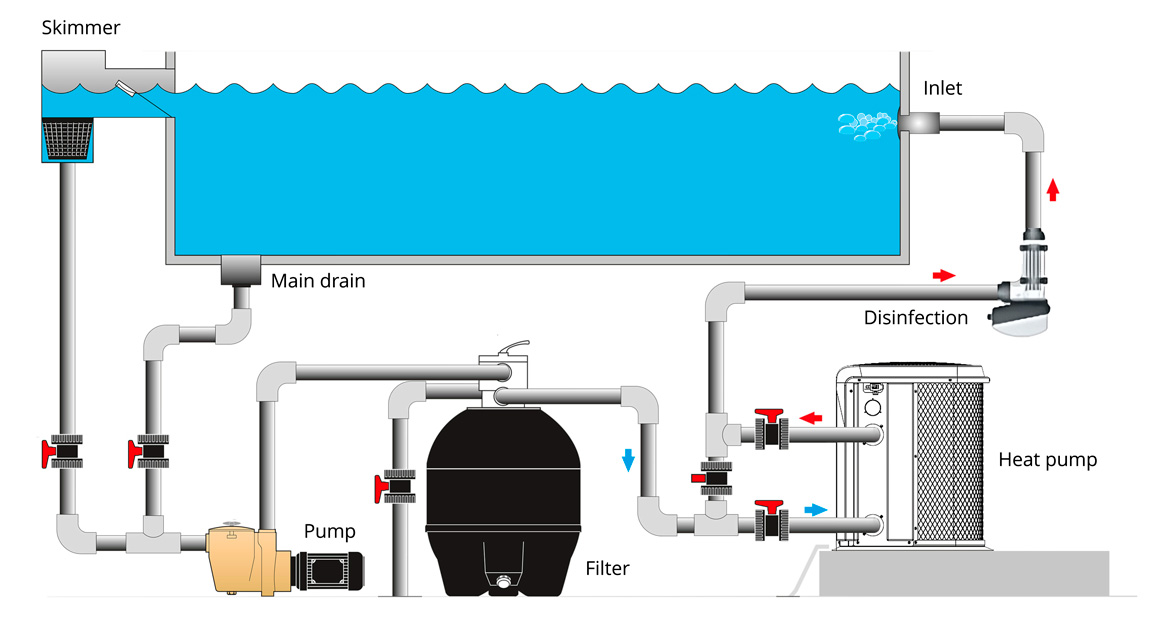

Connection diagram
