Battery

Powerful and versatile

• Safe Lithium Iron Phosphate Battery 5 120 Wh
• Class A Battery Cells: We use exclusively new lithium-iron-phosphate (LiFePO4) cells of the highest Class A grade, which ensures stable voltage, low self-discharge, and maximum safety.
• Reliability Margin: An uprated 150A BMS is installed (for a 100A maximum charge). This 50% engineering headroom ensures low thermal operation, minimizes component stress, and provides the best system stability and longevity during intensive use.
• High Compatibility: Our battery works with 99% of inverters available on the market. You can select one of the 34 supported protocols via the display.
• 6000+ charge/discharge cycles, with over 70% SoH¹ capacity retention. This ensures over 10-15 years of reliable operation.
• Flexible scaling up to 76.8 kWh: Ability to connect up to 15 modules in parallel
• Support for fast charging (1C): Ability to charge with a high current up to 100A (1C), allowing you to quickly replenish energy reserves when needed.
• Support for Hatcat Remote Monitoring Starter Kit for managing the device from your phone via Wi-Fi*. Available for Android and iOS mobile devices.
• Intelligent BMS Protection: The professional PACE P16S150A BMS board provides complete protection against overheating, overload, deep discharge, high/low voltage, and short circuits.
• Intelligent battery charging system for extended lifespan.
  Automatic charge equalization for each cell
• Durable steel enclosure (IP51): Unlike plastic counterparts, the robust powder-coated steel housing provides better protection and heat dissipation.

Battery module connection options

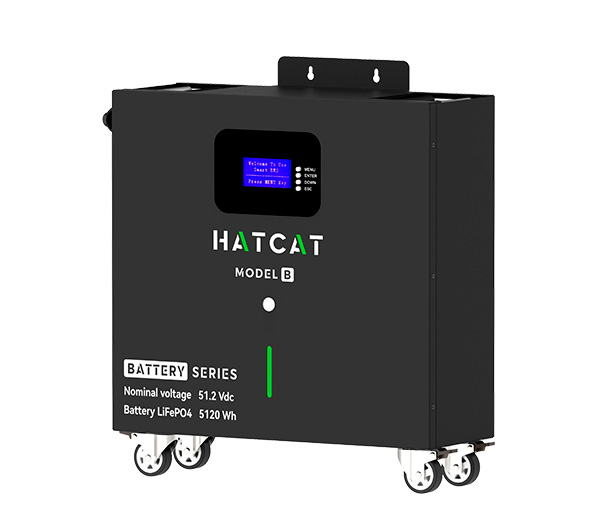

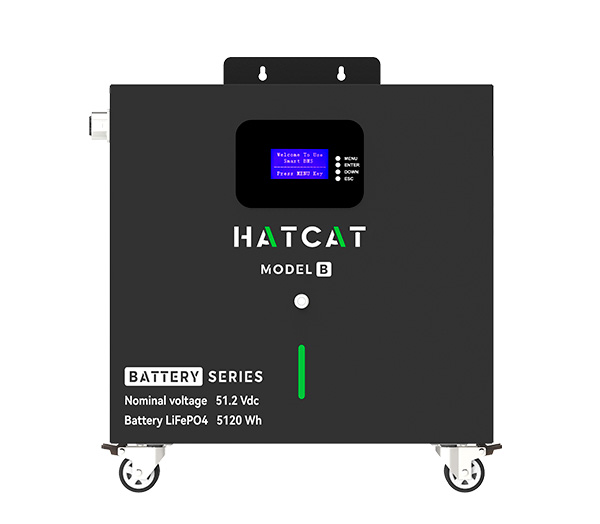

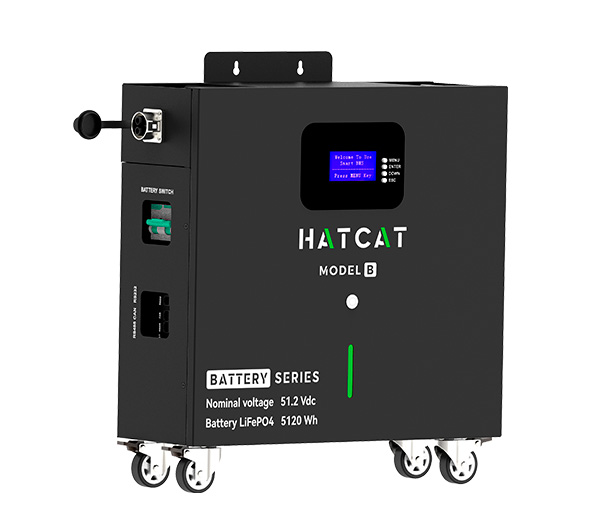

Model B

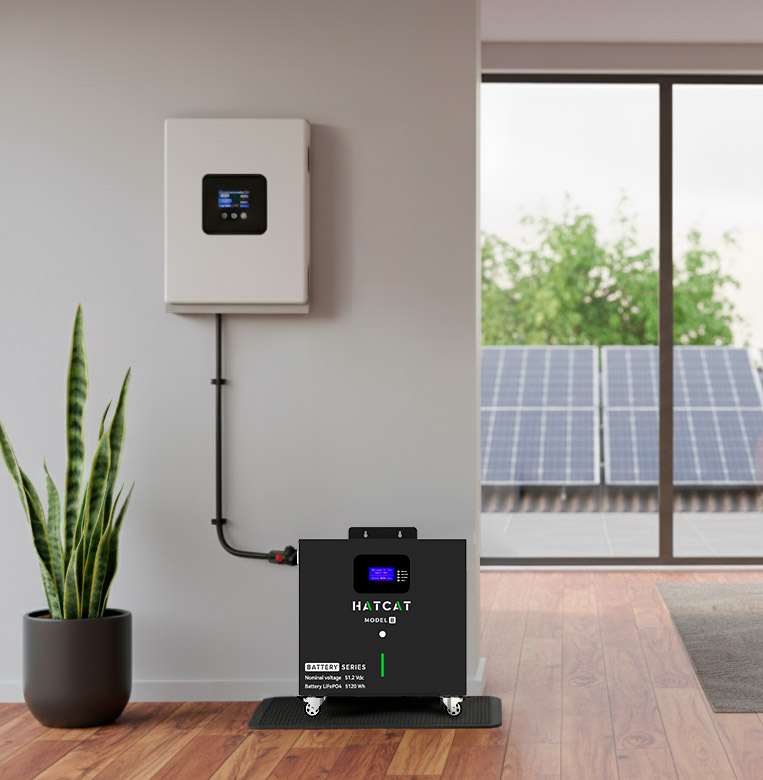

Connection to an inverter

Using the DC Power Link connector²
(included in the standard delivery set).

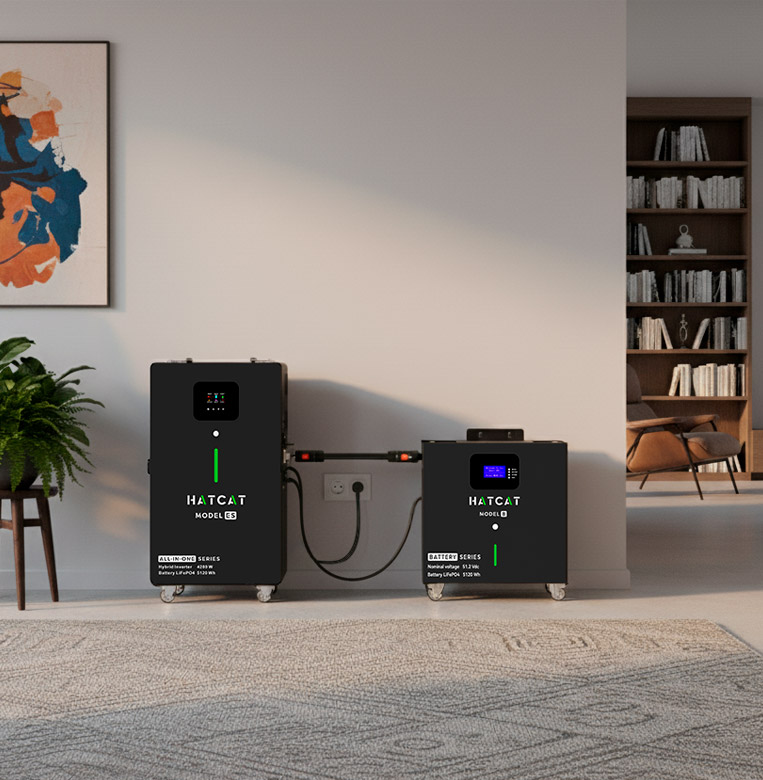

Connection to the power station

Using the Extra Battery Link Cable²
(included when purchasing the module with the station).

Specifications

• Capacity 5120 Wh
  100 Ah

• Battery cell technology Lithium Iron Phosphate
  LFP (LiFePO4), Class A

• Nominal Voltage 51.2V

• BMS PACE P16S150A (150 A)

• Battery Life Cycle 6000+ cycles,
  with >70% SoH capacity retention¹

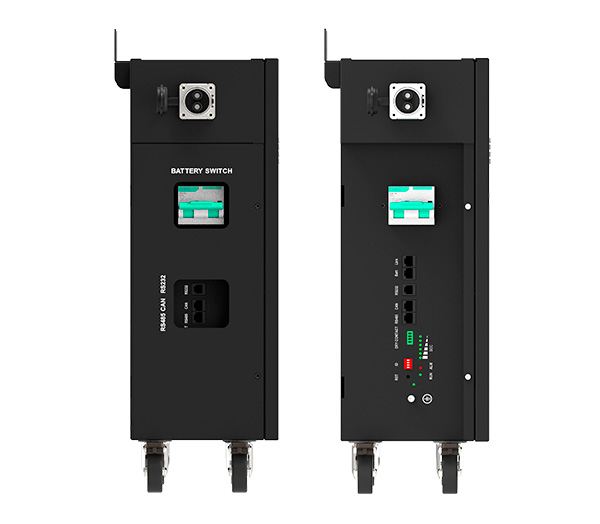

• Communication Ports RS485 / CAN / Battery to battery

• Charging Characteristics    − Maximum charging current: 100 A (1C)
     − Fast charging current: 100 A (1C, at 25°C ± 5°C)
     − Recommended charging current: 50 A (0.5C)
     − Recommended charging voltage: < 58.4 VDC
     − Cut-off voltage: > 58.4 VDC

• Discharge Characteristics    − Maximum discharge current: 100 A (1C)
     − Low voltage warning: 44.8 VDC
     − Cut-off voltage: 43.2 VDC

• Internet connection WiFi 2.4 GHz (optional)

• Compatible Devices    − Inverters, off-grid and UPS systems
     − Power Station ALL-IN-ONE Model ES

• Protective functions    − The integrated professional Smart BMS ensures intelligent control and balancing of each individual battery cell, as well as providing protection against short circuits, overvoltage, overheating, overcharging, undervoltage, and overload.
     − Metal fireproof housing
     − 125A circuit breaker for battery protection

• Additional functions    − Removable wheels for transport (with lock)
     − Communication protocol change via display
     − Parallel connection of up to 15 modules

• Operating conditions Discharge temperature: -20 °C ~ 55 °C
  Charging temperature: 0 °C ~ 55 °C
  Storage temperature: -10 °C ~ 40 °C
  Humidity: 10% to 90% (non-condensing)

• Supported Protocols    − Protocols for CAN port
  PACE, PYLON, GROWATT, AFORE, VICTRON, SE (SRNE), LUXPOWER, SRD (Sorotec), SMA, GOODWE, STUDER, SOFAR, PV, JINLAND (Solis), DIDU, SENERGYINV, TBB_LITHIUM, PYLON_V202/206, GROWATT_V109, MUST_V202, MEGAREVO, SUNSYNK
     − Protocols for RS485 port
  PACE_MODBUS, PYLON, GROWATT, VOLTRONIC, SE (SRNE), LUXPOWER / V01 / V03, WOW, PYLON_F, XIONGTAO

• Dimensions Battery module (L × W × H): 508 × 195 × 550 mm
  Packaging (L × W × H): 625 × 285 × 660 mm

• Safety certificates CE, IEC 62619-2017, EMC, MSDS, UN38.3

• Weight 47.7 kg (Net)
  51.4 kg (Gross)

• Delivery set    − Battery module
     − DC Power Link connector² (adapter for power cable connection)
     − Data cable (RJ45)
     − Set of anchors for module fixation
     − User manual

Download Center

¹ The battery retains >70% of its initial capacity after 6000 cycles at: charge/discharge current of 0.5C/0.5C, an ambient temperature of 25°C, and a maximum depth of discharge of 80% DoD.

² If you purchased the battery module together with our power station (Hatcat ALL-IN-ONE Model ES), the "DC Power Link" connector will be replaced with the "Extra Battery Link Cable" for easy connection between the two devices.
