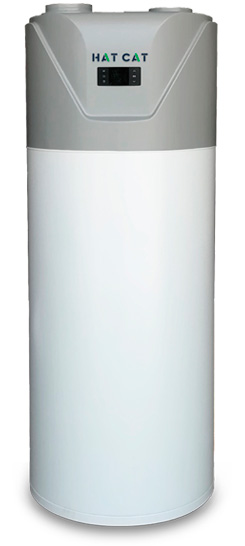

Model A
All in one,
2800W,
Tank 200L - 300L,
Booster mode,
Back up heater,
R290, Wi-Fi, A++

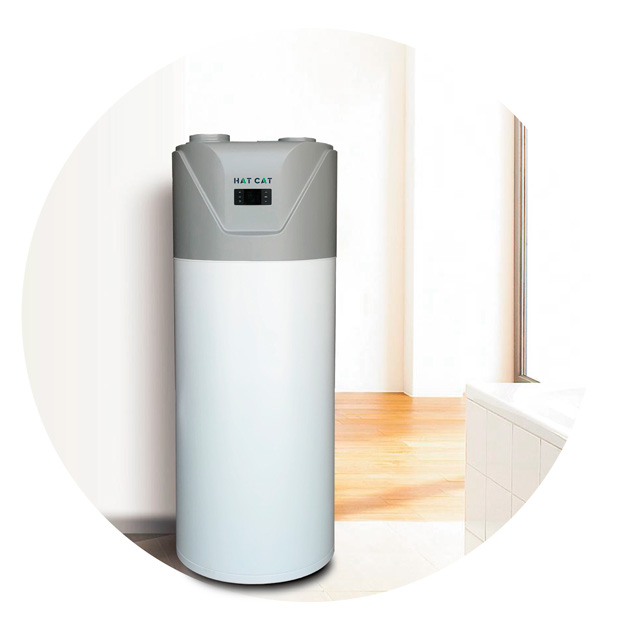

All-in-one heat pump series water heater is specially designed for domestic use. It can be placed anywhere in your home and blends perfectly with your furniture thanks to its elegant appearance.
Heat pumps of the All in One series for heating water - make the process of connecting to your home as easy as possible. Thanks to the built-in thermotank, you do not need to make changes to your plumbing to store hot water. You just need to connect the device to the power supply and connect the pipe for cold and hot water.
Functional and ergonomic
- The series has 3 models with a built-in tank of 200, 250 and 300 liters
- Coefficient of performance (COP) 4.45 KW (COP)
- Efficiency class A++
- Enamel water tank, long service life
- Back up built-in 2 kw electric heater
- Booster mode making 75℃ hot water
- Quiet operation 48 dB
- Fast installation
- Certificates: CE, SG Ready, Rohs, ErP Ready, TÜV SÜD
- 5 years warranty on compressor
Specifications
Key Features
-
Micro-channel echanger, high efficiency Micro-channel heat exchangers have a larger surface area than traditional tubular heat exchangers, which can increase heat transfer efficiency by 30-50%.
-
With 4-way valve inside for defrosting The 4-way valve allows the heat pump evaporator to be defrosted quickly and efficiently, reducing downtime and increasing overall system efficiency. Increases reliability by reducing the risk of damage to the evaporator.
-
Full DC inverter compressor and fan motor Compressor with adjustable speed and inverter drive with 2 paramagnets (brushless). The quiet, highly efficient Hitachi rotary compressor is the heart of the system.
-
High-quality components Our heat pumps are equipped with high quality components from renowned brands such as: Hitachi, Grundfos, Danfoss...
-
Environmentally friendly refrigerant R290 The natural refrigerant propane R290 is an organic compound and is a hydrocarbon. It has a higher thermal conductivity compared to other refrigerants, which means that it can transport heat/cold into the home with maximum efficiency and requires significantly less electricity.
-
Control via Wi-Fi and ModBus Full control and configuration of equipment using a phone application. You can easily control the climate in your home from anywhere in the world.
-
Outlet water temperature up to +75℃ Supply of hot water up to 75ºC for domestic needs without the need to use additional heating sources.
-
Color touch screen Covering all aspects of heat pump and system management on a touch screen
Specifications
 |
|
|
|||
| Model | A200-R290-1P | A250-R290-1P | A300-R290-1P | ||
|---|---|---|---|---|---|
| Volume | L | 200L | 250L | 300L | |
| Power Supply | V ∕ Ph ∕ Hz | 220~240V ∕ 1 ∕ 50Hz | |||
| Heating Capacity | W | 2800 | |||
| Rated Hot Water Production | L/h | 60 | |||
| Rated Power Input | W | 629 | |||
| Rated Current Input | A | 2.8 | |||
| COP | W∕W | 4.45 | |||
| Electric Heater | Rated Power Input | W | 2000 | ||
| Rated Current Input | A | 8.9 | |||
| Power Input Max. | W | 3000 | |||
| Current Input Max. | A | 13.3 | |||
| Refrigerant Type / Charge / GWP | R290 ∕ 0.45kg ∕ 3 | ||||
| CO2 Equivalent | 0.00135t | ||||
| Working Ambient temperature | ℃ | -7 ~ 46 | |||
| Operation Pressure(Low Side) | MPa | 0.8 | |||
| Operation Pressure(High Side) | MPa | 3 | |||
| Maximum Allowable Pressure | MPa | 3 | |||
| Electrical Shockproof | 1 class | ||||
| IP Class | IP1 | ||||
| Water Tank Capacity | L | 200 | 250 | 278 | |
| Water Piping Connections | In | 3/4 | |||
| Rated Working Pressure Of Tank | MPa | 0.8 | |||
| Air flow Rated | m3∕h | 450 | |||
| Unit Dimensions (W∕H∕D) | mm | 1650 * Ø620 | 1880 * Ø620 | 2050 * Ø620 | |
| Shipping Dimensions (W∕H∕D) | mm | 1755*700*700 | 1985*700*700 | 2155*700*700 | |
| Noise | dB (A) | 48 | |||
| Net Weight | kg | 95 | 105 | 115 | |

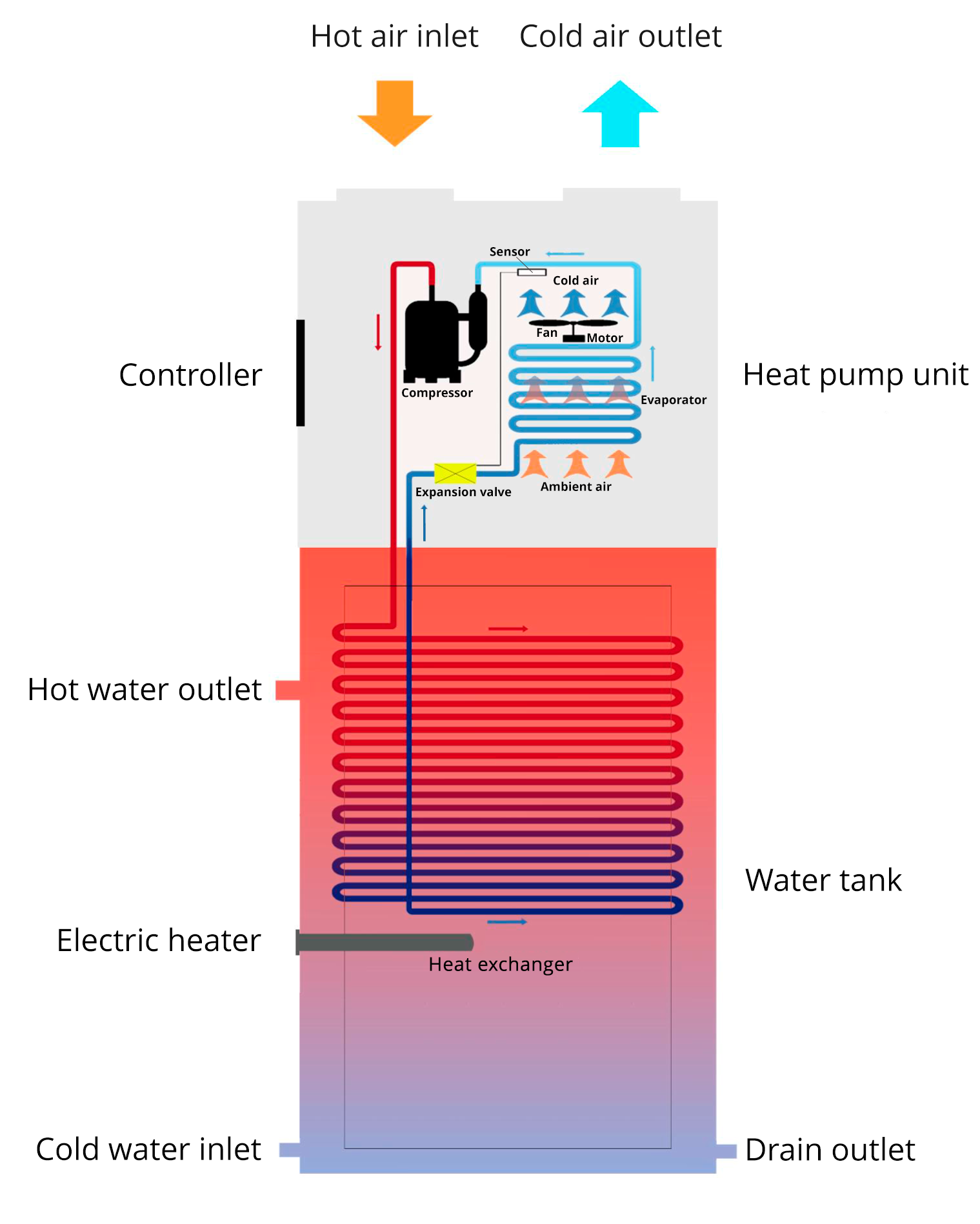

Inner structure

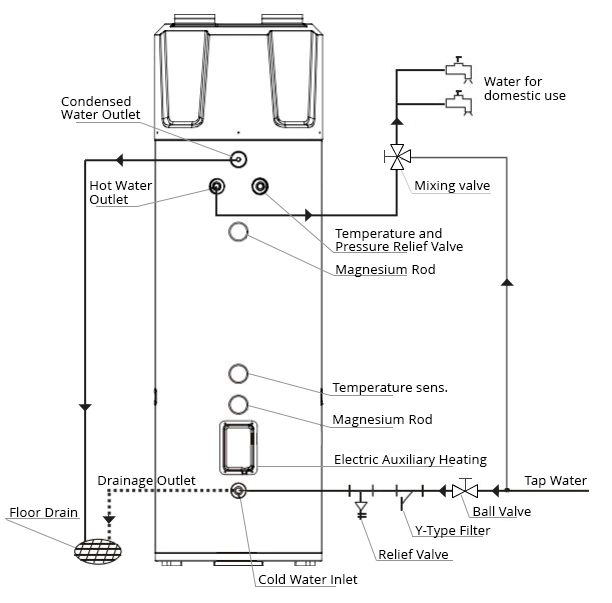

Connection diagram
